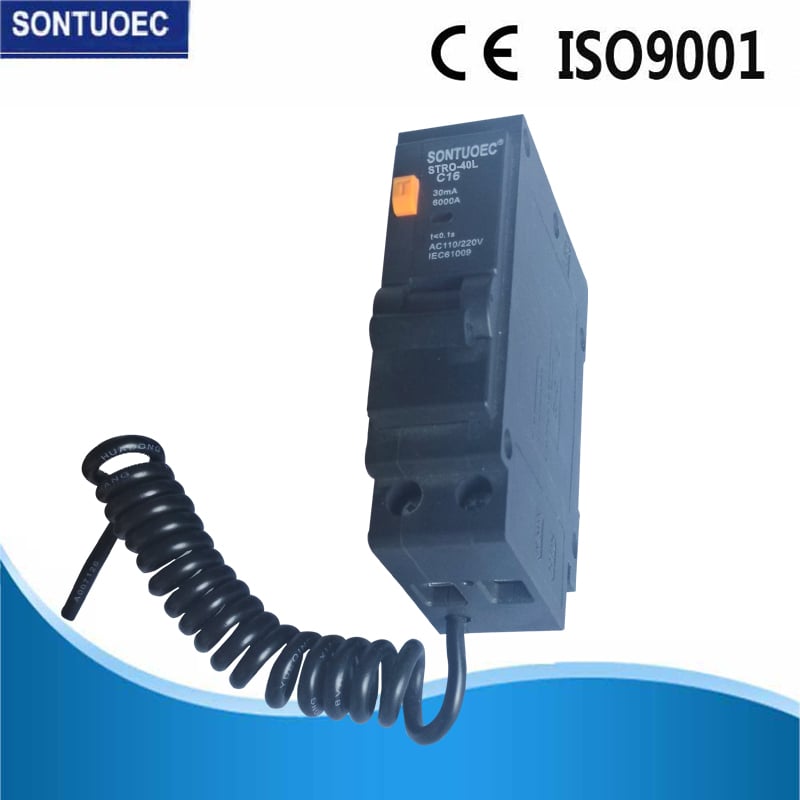

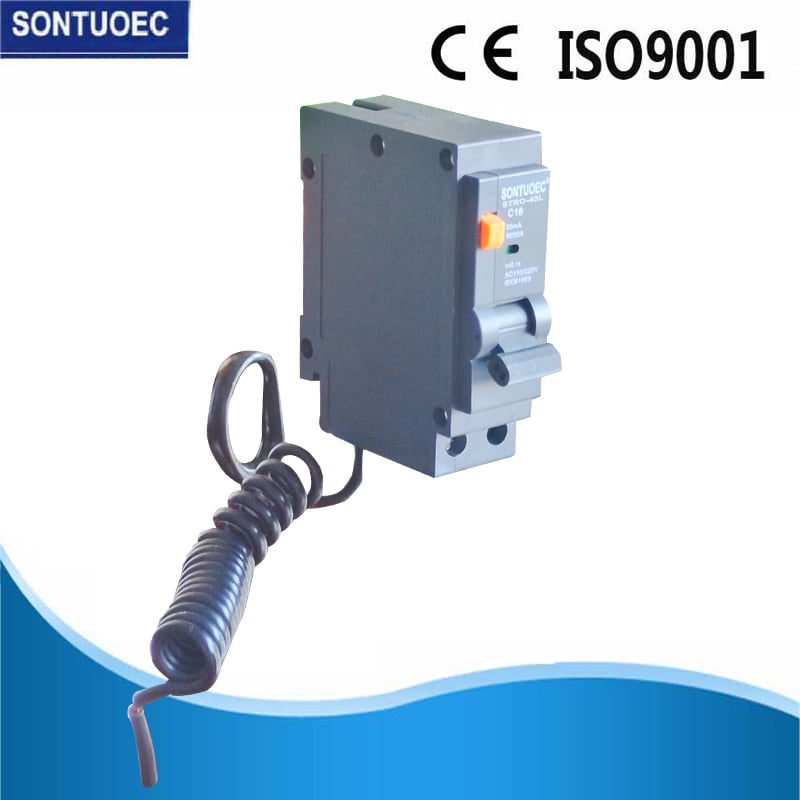

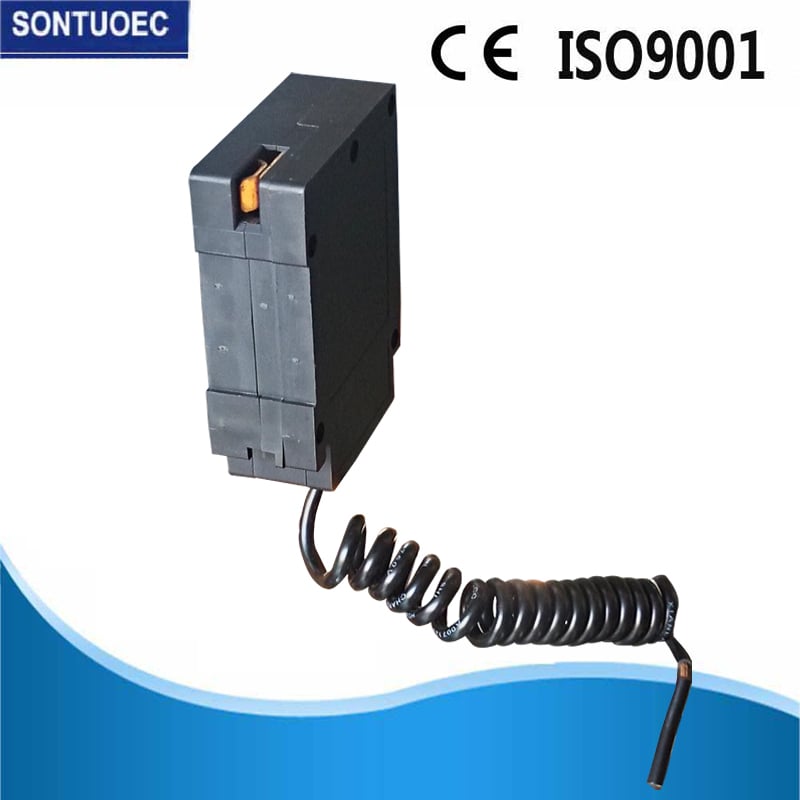

Single Phase Plug-in RCBO Circuit Breaker 1p+N Pole
We provide free samples, you just need to cover the shipping cost. we sincerely look forward to cooperating with you for mutual benefit, and please contact us for any other questions.
Specifications:
| Standard | IEC61009 |
| Breaking Capacity | 6KA |
| Number of poles | 1P+N(1 module) |
| Rated currents | 6,10,16, 20, 25, 32, 40A |
| Rated voltage | 110/220VAC |
| Rated Tripping Current | 10mA,30mA, 100mA,300mA |
| Residual current off-time | ≤0.1s |
| Characteristic | B ,C |
| Electrical endurance | 10000 |
| Mechanical endurance | 20000 |
| Ambient temperature | -25ºC~+45ºC Max. 95%humdity |
| ConnectiType of terminalon terminal | Flexible conductor 16mm² |
| Rigid conductor 25mm² | |
| Plug-in type | |
| Width | 18mm /module |
Product Description
Introducing our high-performance Plug-in Type Single Phase 1p+N Pole RCBO Circuit Breaker - the ultimate solution for your electrical safety needs! Designer event tried to ping, this circuit breaker offers unrivaled protection against overloads and short circuits. Its innovative plug-in design ensures easy installation and compatibility with various electrical systems. Ideal for residential and commercial applications, this RCBO breaker guarantees utmost reliability and peace of mind. Don't compromise on safety - choose our Plug-in Circuit Breaker for unmatched quality and exceptional performance. Upgrade your electrical system today!
Product Features
- Plug-in Type: Easy installation, no need for wiring or professional assistance
- Single Phase 1p+N Pole: Suitable for single-phase electrical systems
- RCBO Circuit Breaker: Protects against overcurrent and ground faults
- Keeps Tripping: Automatically trips when a fault is detected, ensuring safety
- Compact Design: Space-saving, ideal for residential and commercial applications
Application of plug-in circuit breaker
- Protects electrical circuits from overloads and short circuits
- Specifically designed for single-phase electrical systems
- Includes a neutral pole for added safety
- Trips the circuit breaker immediately upon detecting a fault
- Easy to install and remove with the plug-in design
