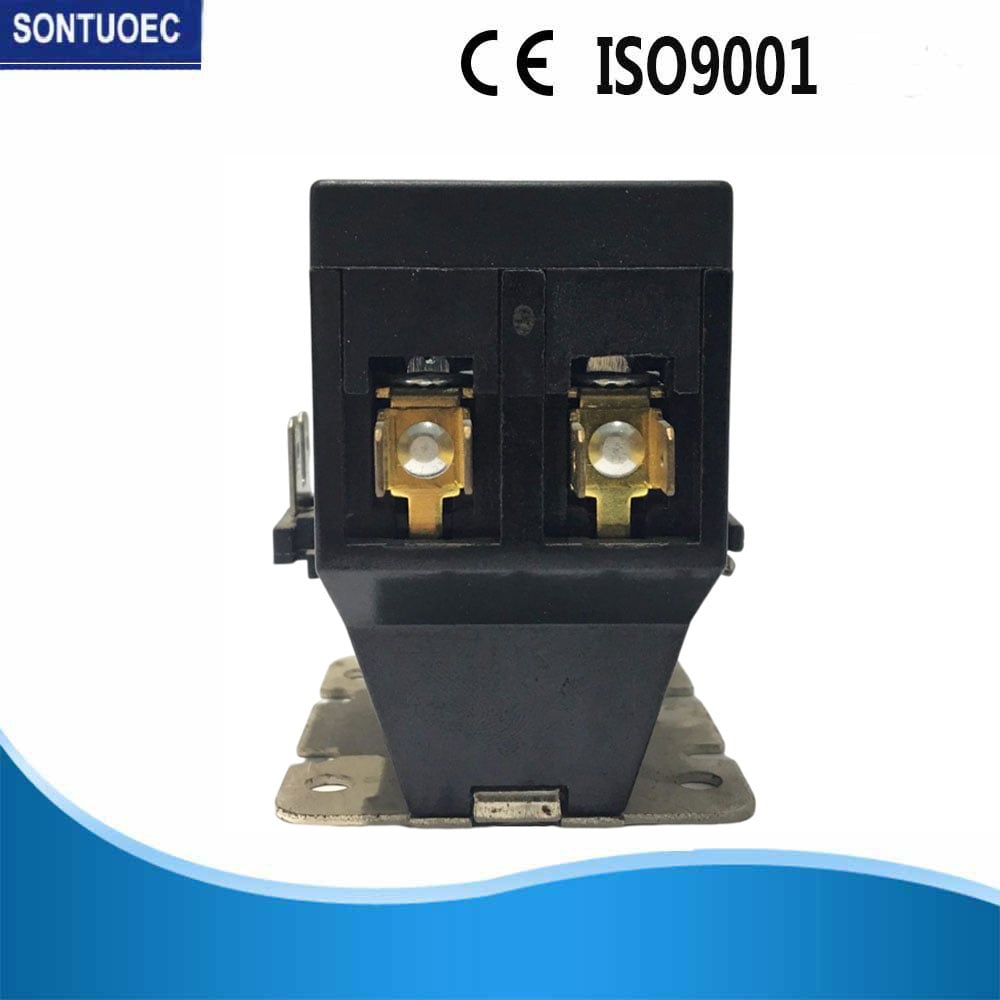

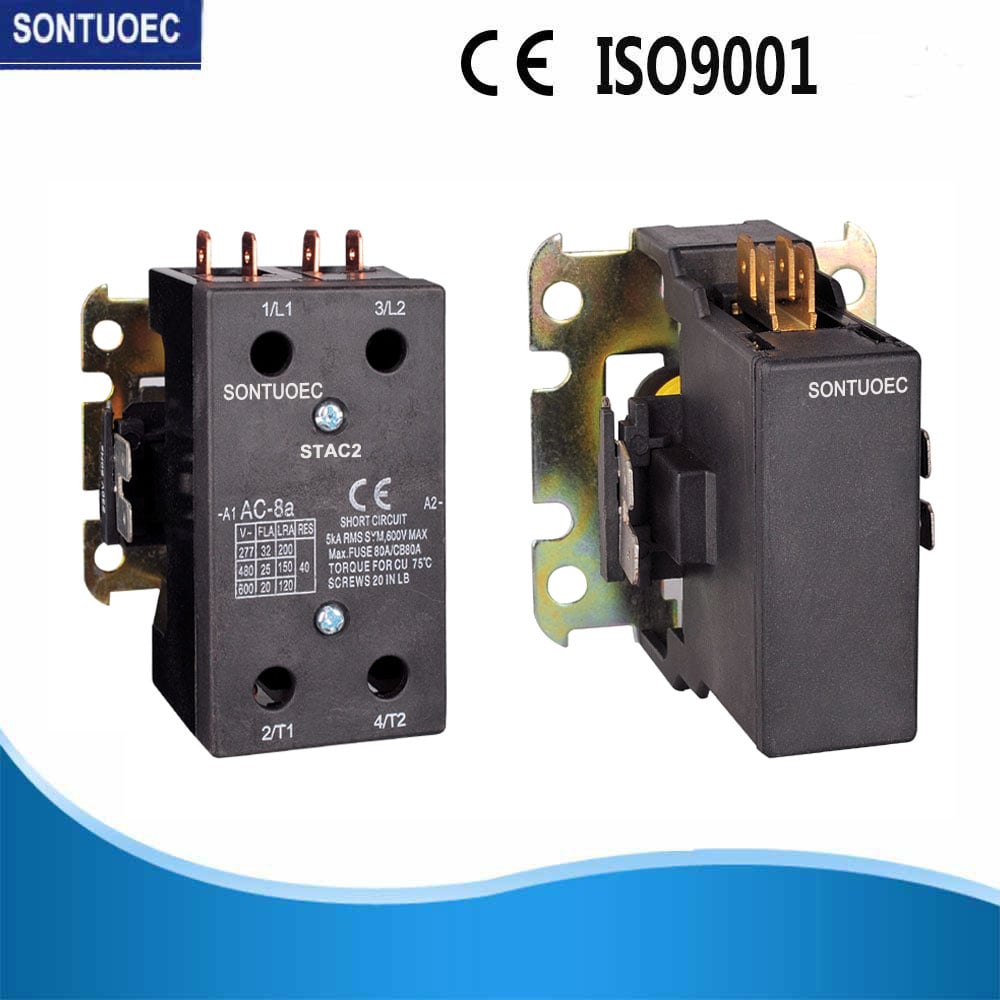

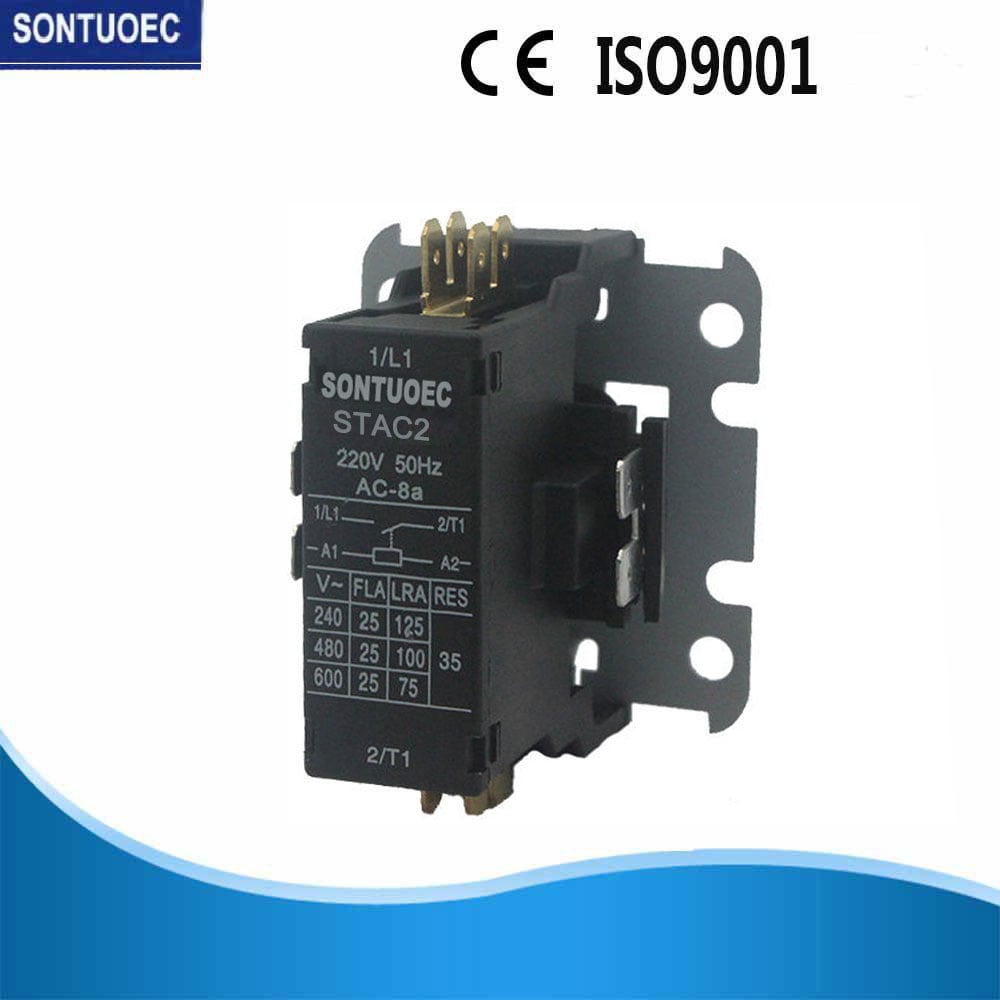

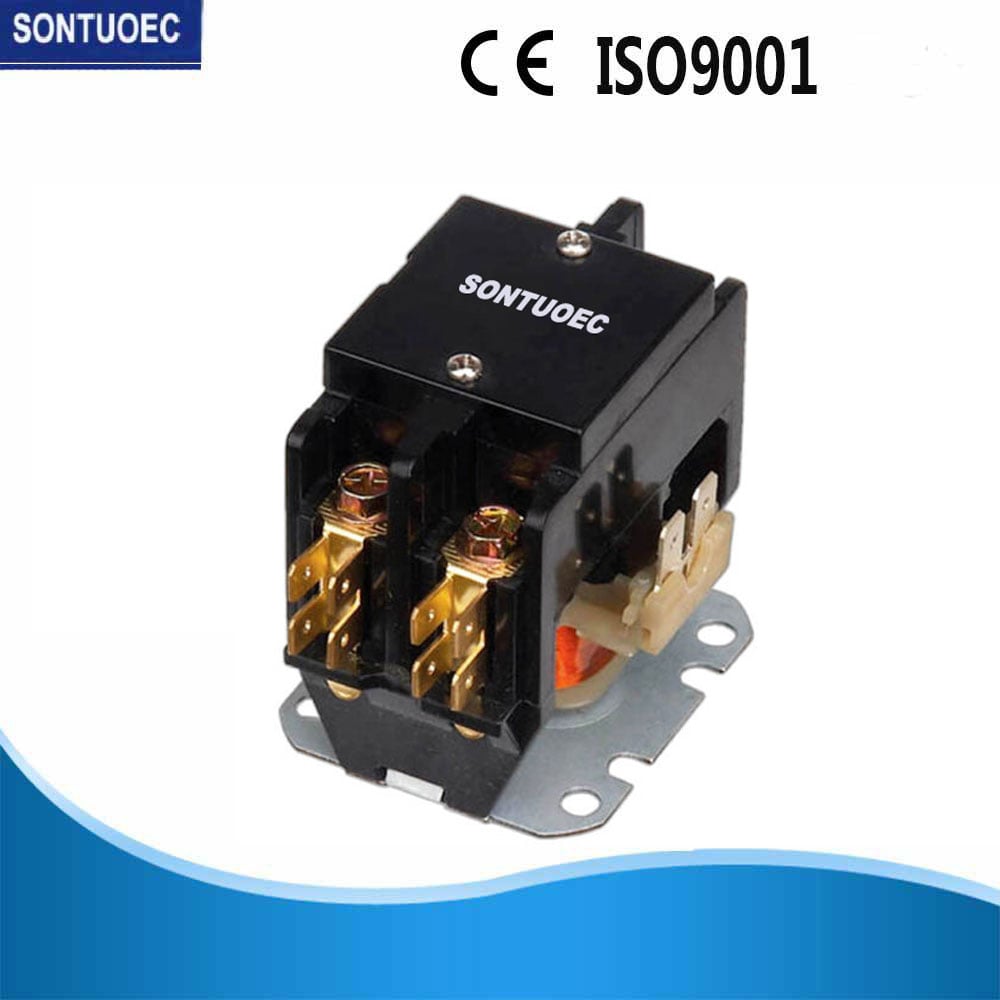

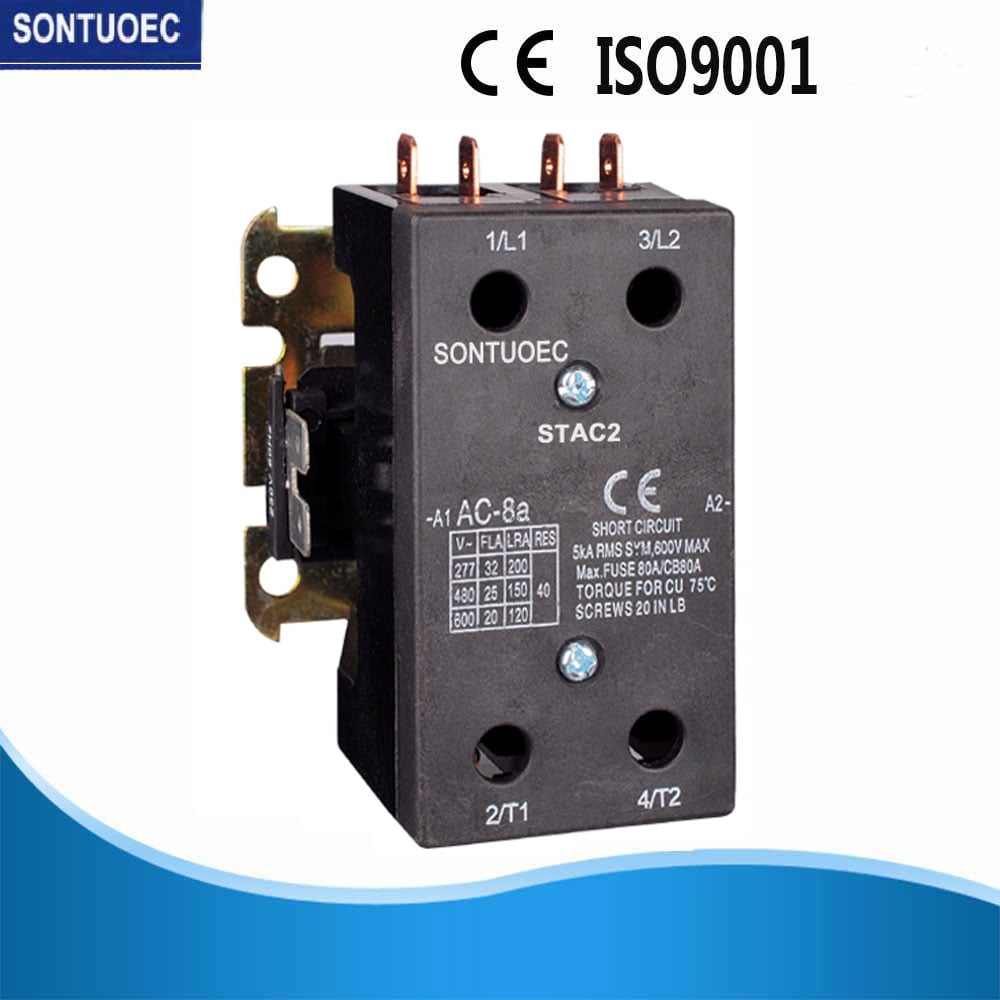

OT Product Stac2 Series AC Air Conditioning Contactor Stac2
We provide free samples, you just need to cover the shipping cost. we sincerely look forward to cooperating with you for mutual benefit, and please contact us for any other questions.
Product Specifications:
| Coil rating | 1Pole contactors | 2 pole contacts | |||||||
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 | |
| Nominal coil resistance Ohms | 18 | 420 | 1800 | 2500 | 11 | 237 | 1000 | 1600 | |
| Maximum pick up voltage | 18 | 88 | 177 | 221 | 18 | 88 | 177 | 221 | |
| Maximum drop out voltage | 6.15 | 20-70 | 40-140 | 50-165 | 6.15 | 20-70 | 40-140 | 50-165 | |
| Nominal rush Va 50Hz | 31 | 31 | 31 | 31 | 33 | 33 | 33 | 33 | |
| Nominal rush Va 60Hz | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 | |
| Nominal rush Va 50Hz | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | |
| Nominal rush Va 60Hz | 5 | 5 | 5 | 5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Maximum coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 132 | 300 | |
| Coil rating | 3Pole contactors | 4 pole contacts | |||||||
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 | |
| Nominal coil resistance Ohms | 7 | 180 | 720 | 900 | 6 | 150 | 600 | 750 | |
| Maximum pick up voltage | 18 | 88 | 177 | 220 | 18 | 88 | 177 | 220 | |
| Maximum drop out voltage | 6.15 | 20-70 | 40-140 | 50-165 | 6.15 | 20-70 | 40-140 | 65-185 | |
| Nominal rush Va@50Hz | 65 | 65 | 65 | 65 | 62 | 62 | 62 | 62 | |
| Nominal rush Va 60Hz | 60 | 60 | 60 | 60 | 59 | 59 | 59 | 59 | |
| Nominal rush Va 50Hz | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | |
| Nominal rush Va 60Hz | 6 | 6 | 6 | 6 | 7 | 7 | 6 | 7 | |
| Maximum coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 264 | 300 | |
