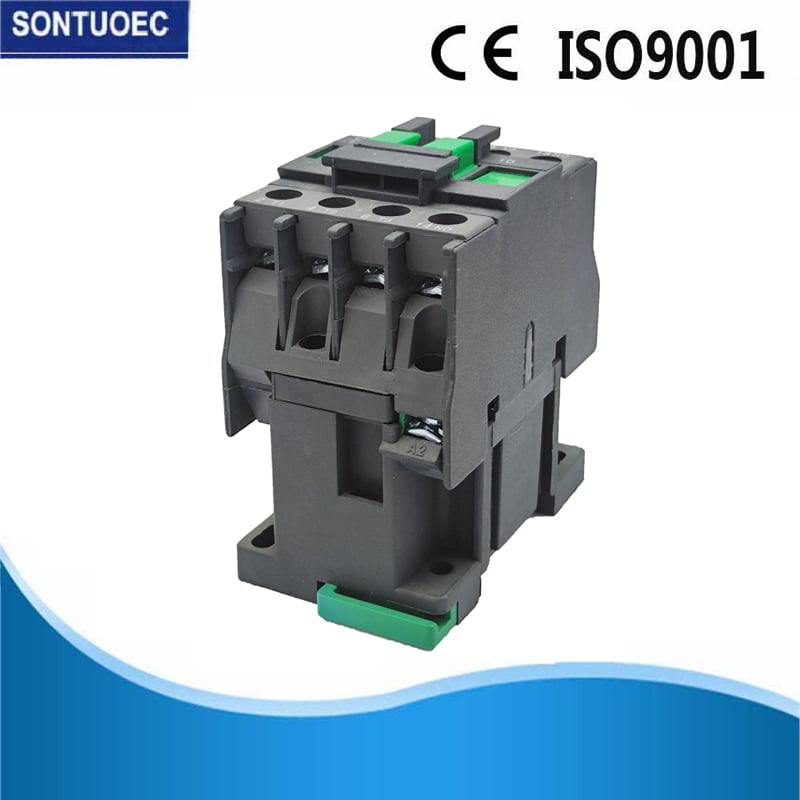

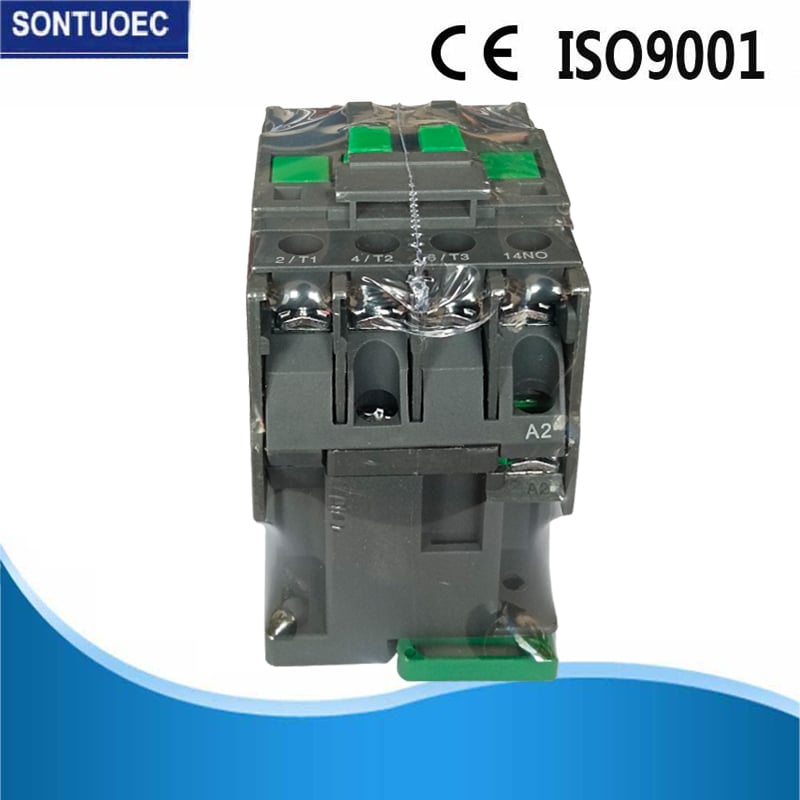

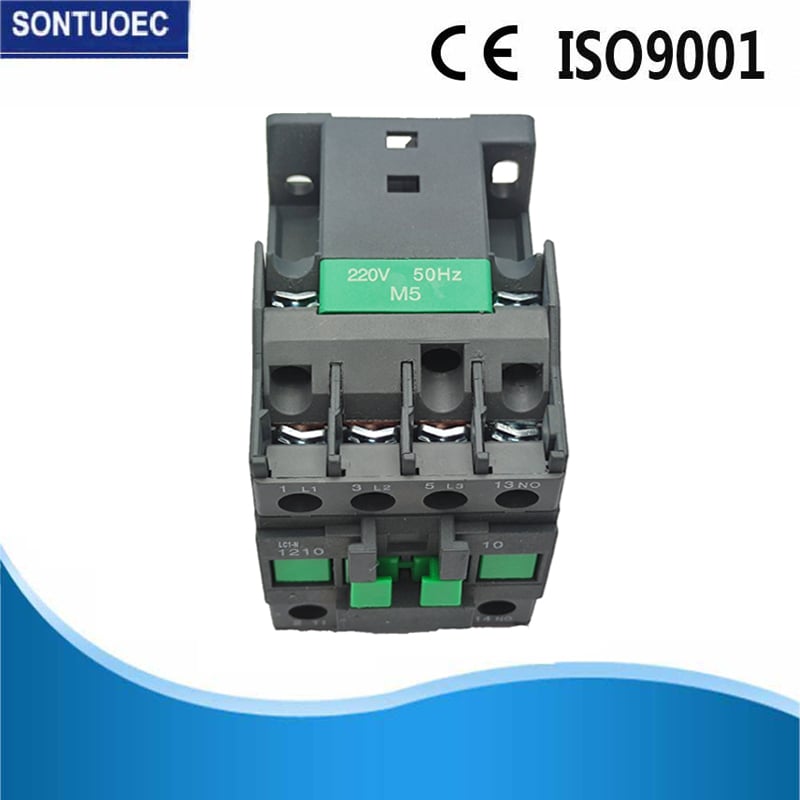

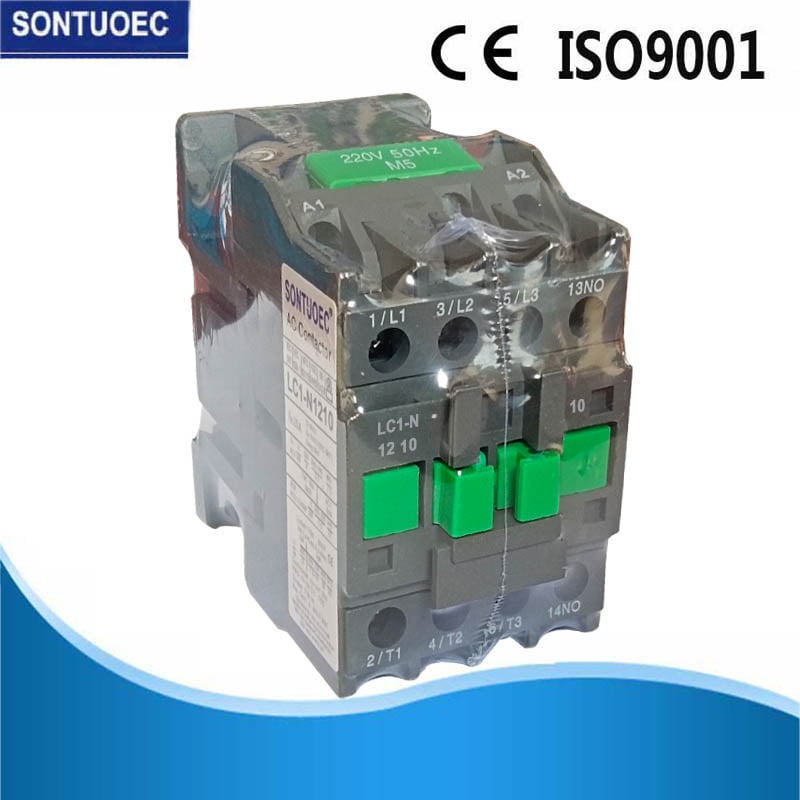

3 Phase AC Contactor LC1-D Magnetic Contactor
We provide free samples, you just need to cover the shipping cost. we sincerely look forward to cooperating with you for mutual benefit, and please contact us for any other questions.
Product Specifications:
| model | Rated | Thermal current | Rated | Control power(kw) | No .of contacts | ||||
| voltage | current | 220V | 380V | 415V | 440V | 660V | |||
| LC1-N09 | 660V | 20A | 9A | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO+NC |
| LC1-N12 | 660V | 20A | 12A | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO+NC |
| LC1-N18 | 660V | 32A | 18A | 4 | 7.5 | 9 | 9 | 9 | 3P+NO+NC |
| LC1-N25 | 660V | 40A | 25A | 5.5 | 11 | 11 | 11 | 15 | 3P+NO+NC |
| LC1-N32 | 660V | 50A | 32A | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO+NC |
| LC1-N40 | 660V | 60A | 40A | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC |
| LC1-N50 | 660V | 80A | 50A | 15 | 22 | 25 | 30 | 33 | |
| LC1-N65 | 660V | 80A | 65A | 18.5 | 30 | 37 | 37 | 37 | |
| LC1-N80 | 660V | 125A | 80A | 22 | 37 | 45 | 45 | 45 | |
| LC1-N95 | 660V | 125A | 95A | 25 | 45 | 45 | 45 | 45 | |
