2p 4p Residual Current Circuit Breaker RCCB, RCD
We provide free samples, you just need to cover the shipping cost. we sincerely look forward to cooperating with you for mutual benefit, and please contact us for any other questions.
Specifications：
| Sandard: | IEC/EN61008.1 | |||||
| Electrical | Type(wave form of the earth leakage sensed) | Electro-magnetic type, electronic type | ||||
| features | Residual Current characterstics | A,AC | ||||
| Poles | P | 2,4 | ||||
| Rated voltage Us | V | AC 240/415 | ||||
| Rated current (In) | A | 16,20A,25A,32A,40A,63A;80,100A | ||||
| Rated sensitivity I△n | mA | 10,30,100,300,500mA | ||||
| Insulation voltage Ui | V | 500 | ||||
| Rated residual making and | A | 630 | ||||
| breaking capacity I△m | ||||||
| Short-circuit current I△c | A | 6000 | ||||
| SCPD fuse | A | 6000 | ||||
| Rated frequency | Hz | 50/60 | ||||
| Pollution degree | 2 | |||||
| Mechanical | Electrical life | t | 4000 | |||
| features | Mechanical life | t | 10000 | |||
| Protection degree | IP20 | |||||
| Ambient temperature | ºC | -25~+40 | ||||
| (with daily average ≤35ºC) | ||||||
| Storage temperature | ºC | -25~+70 | ||||
| Installation | Terminal connection type | Cable/U-type busbar/pin-type busbar | ||||
| Terminal size top/bottom for cable | mm2 | 25 | ||||
| AWG | 3月18日 | |||||
| Terminal size top/bottom for busbar | mm2 | 25 | ||||
| AWG | 3月18日 | |||||
| Tightening torque | N*m | 2.5 | ||||
| In-lbs | 22 | |||||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | |||||
| Connection | From top and bottom | |||||

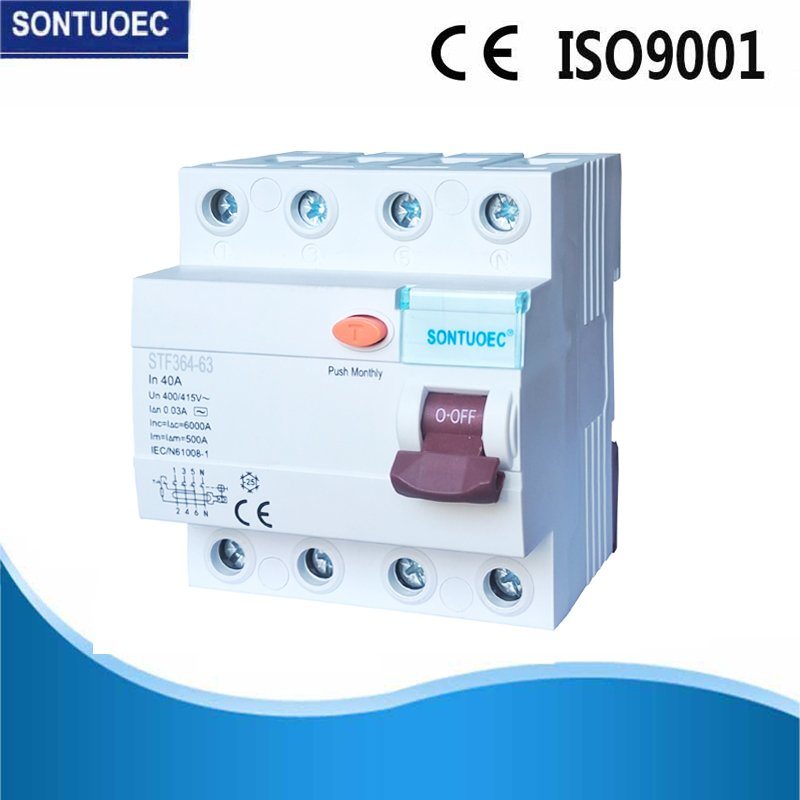

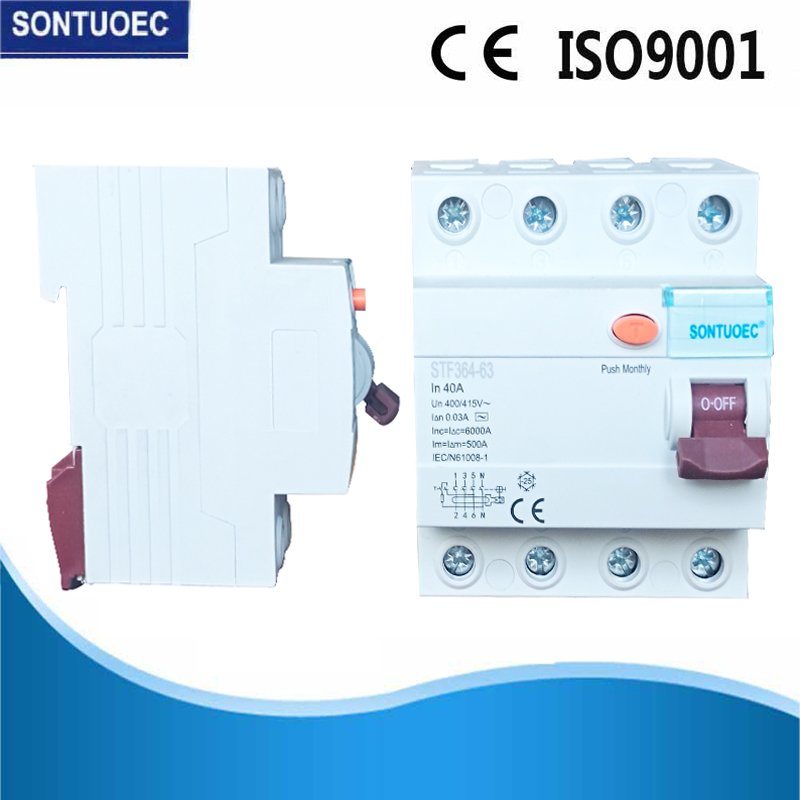

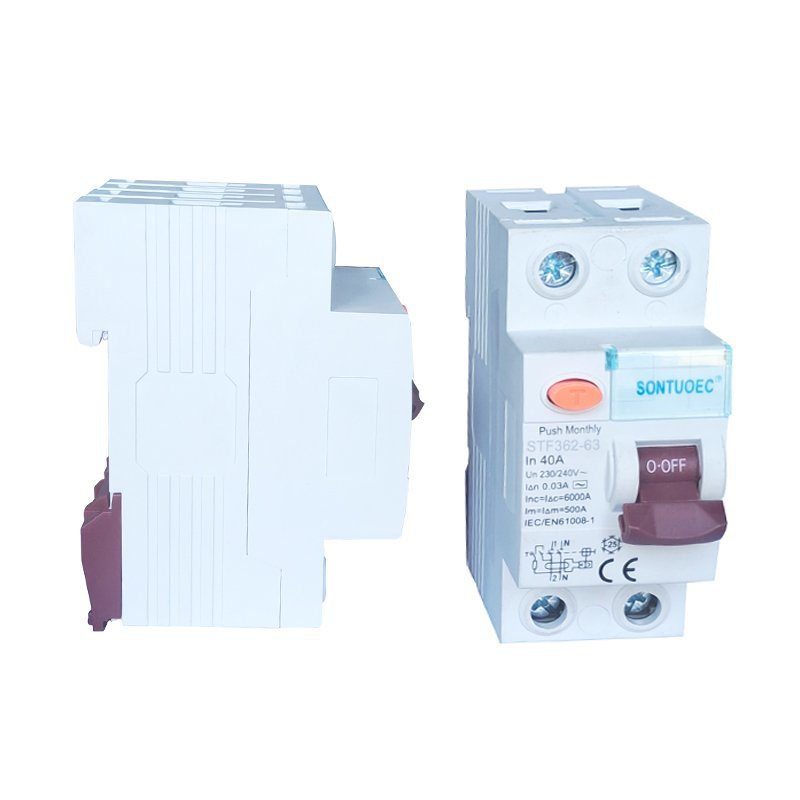

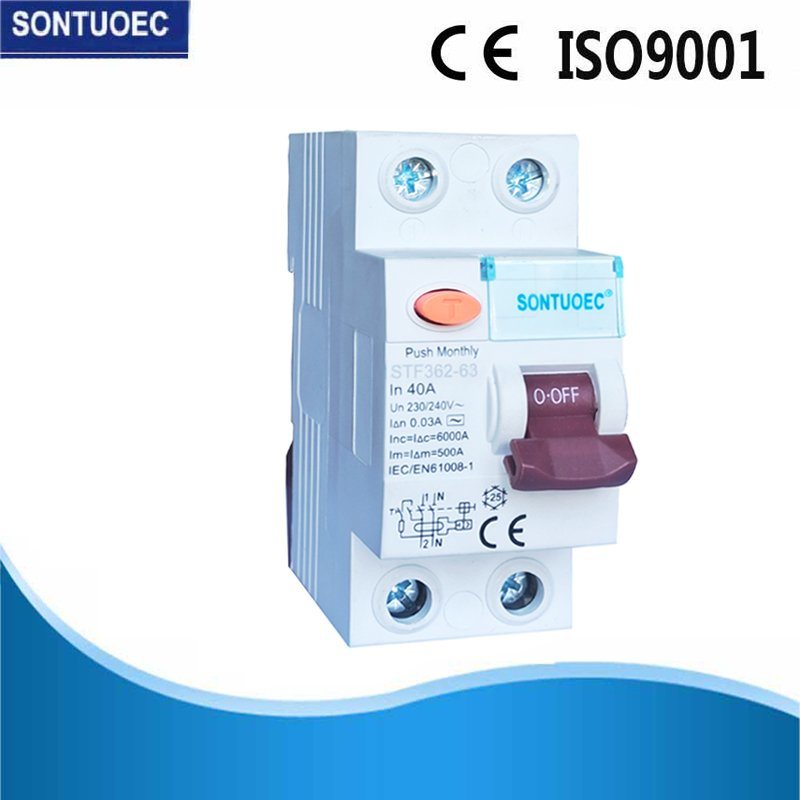

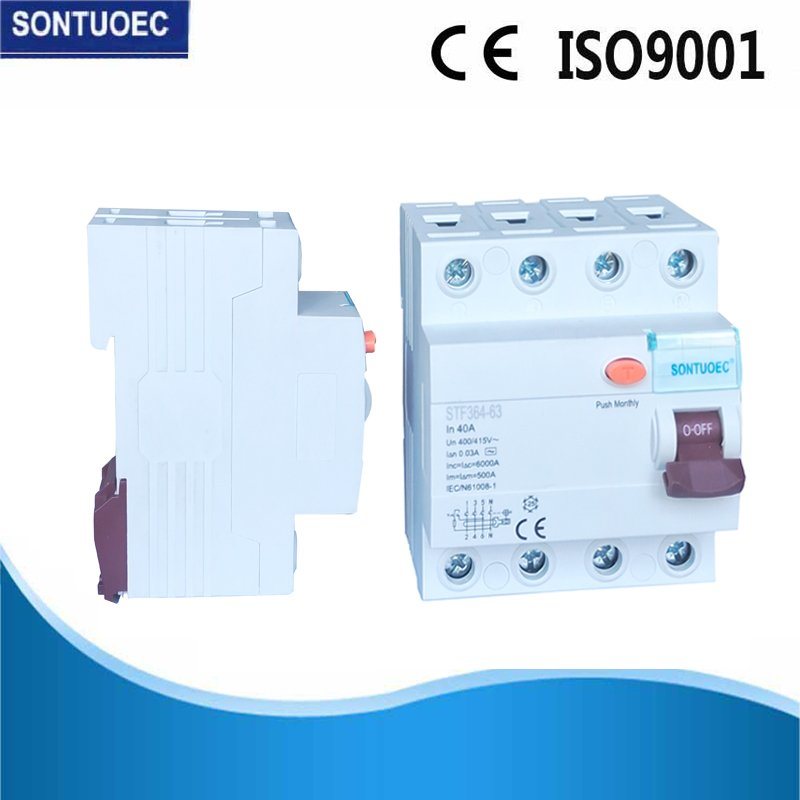

Sontuoec 2p 4p Residual Current Circuit Breaker RCCB, RCD Protector
Stay safe and protected with the Sontuoec 2p 4p Residual Current Circuit Breaker RCCB, RCD Protector. This advanced circuit breaker is designed to detect and interrupt any abnormal current flow, preventing potential electrical hazards. With its reliable performance and high sensitivity, it offers optimal protection for your electrical system.
