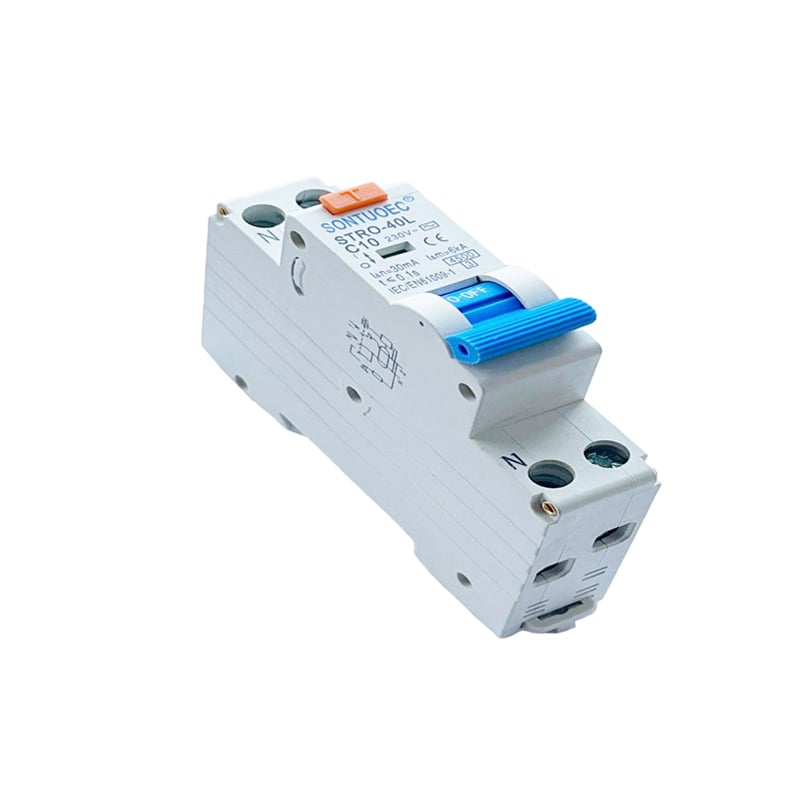

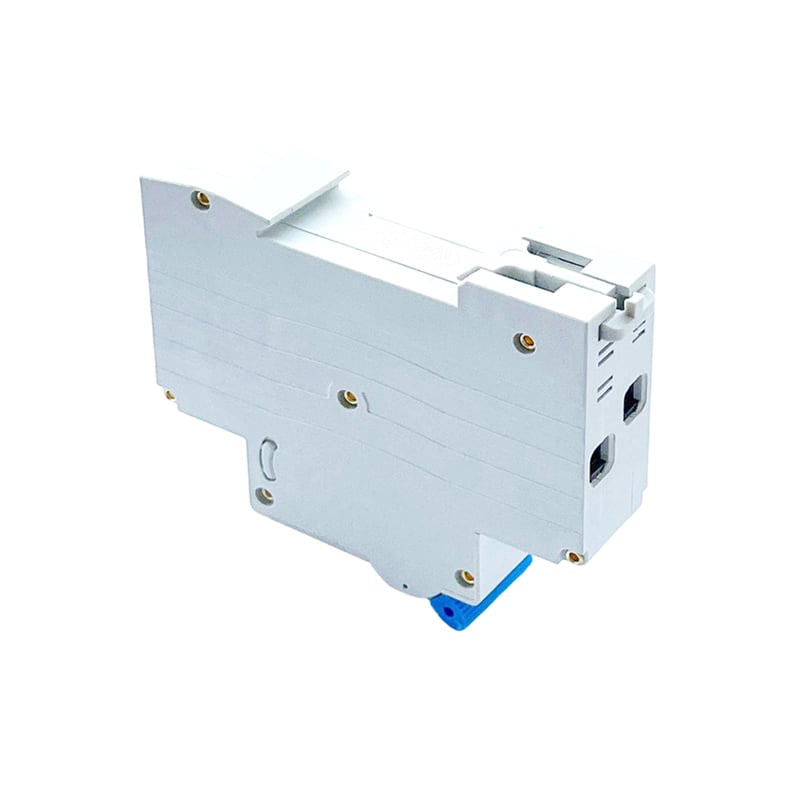

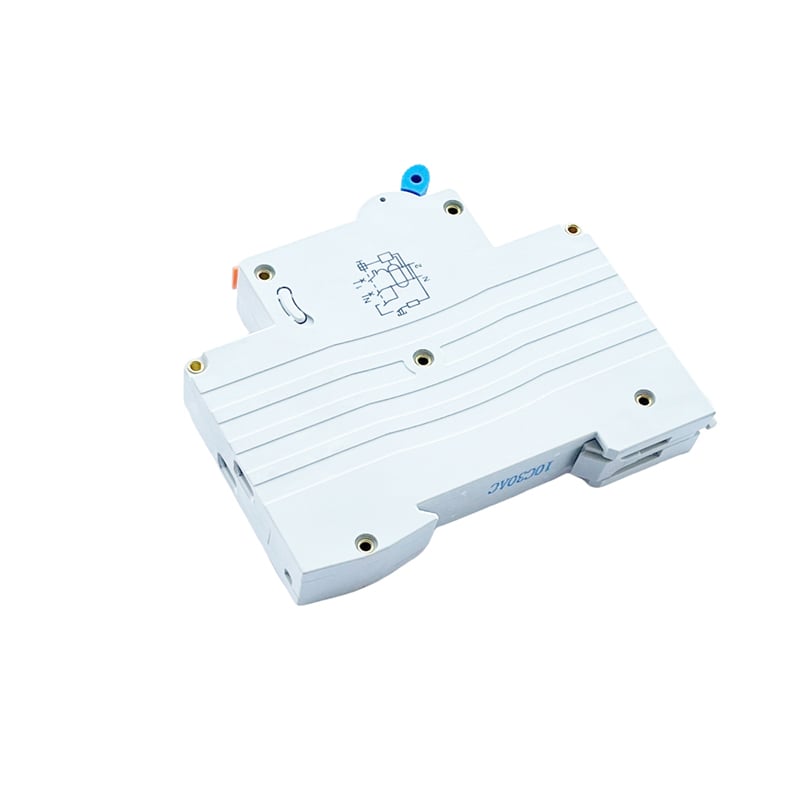

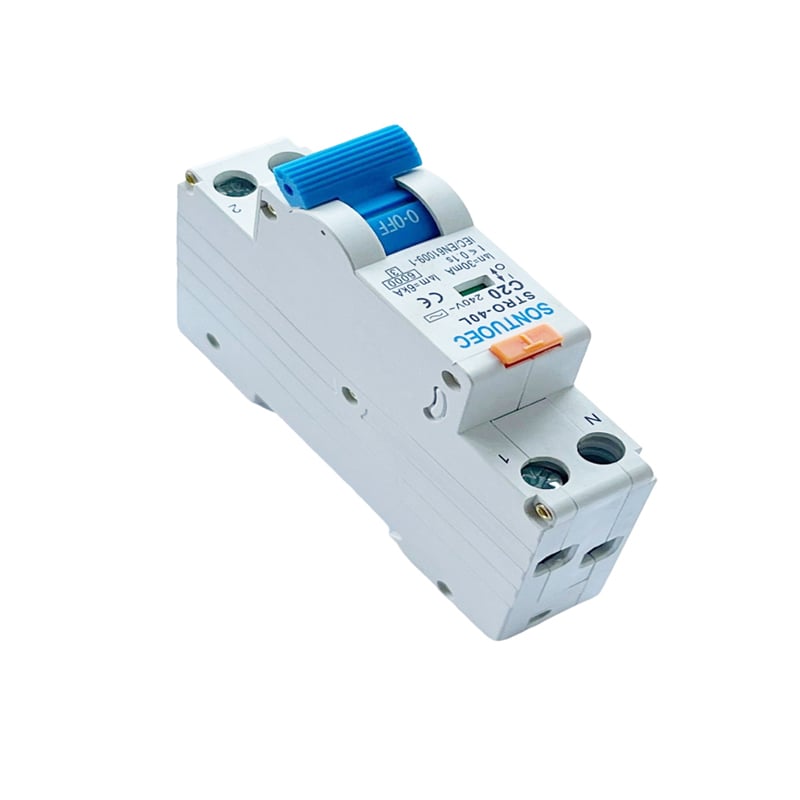

18mm Switch 1p+N Pole RCBO Circuit Breaker
We provide free samples, you just need to cover the shipping cost. we sincerely look forward to cooperating with you for mutual benefit, and please contact us for any other questions.
Specifications：
| Poles | 1P+N (18mm) |
| Curve | B,C |
| Rated current In | 6-,10,16,20,25,32,40A |
| Rated voltage Un (V) | 220V,230V,240V |
| Residual current off-time | ≤0.1S |
| Rated frequency | 50Hz |
| Rated residual operation current | 10mA, 30mA ,100mA,300mA |
| Ambient temperature | -10°C ~ +60°C |
| Fiducial temperature | 30ºC |
| Rated residual non-operating current (mA) | 0.5 |
| EMC | 4000 |
| Breaking capacity | 6KA |
| Rated residual switching and breaking capacity | 500A |
| Short circuit capacity | 4KA |
| Mechanical life | 4000 |
| Protection level | IP20 |
| Tightening torque | 2.0 N*m |
| Type | A , AC |
Product Description
Introducing our 18mm Width Intreruptor Diferential 1p+N Type a Type Circuit Breaker RCBO, the ultimate solution for your electrical needs. This high-performance circuit breaker offers exceptional product features, ensuring safety and reliability. With its wide range of applications, it is perfect for electronic manufacture and supply industry. This RCBO provides superior protection against electrical faults, giving you peace of mind. Its compact design and easy installation make it a must-have for professionals. Don't miss out on the product advantages it offers, order now and experience its exceptional performance!
Product Features
- 18mm width interruptor differential 1p+N type A type circuit breaker RCBO
- Compact design with a width of 18mm
- Intreruptor differential for enhanced safety
- 1p+N type A type circuit breaker for reliable circuit protection
- RCBO functionality for combined residual current and overload protection
Application of circuit breaker
- Protects electrical circuits from overloads and short circuits
- Ensures safety by automatically shutting off the power in case of faults
- Designed for use in residential and commercial electrical systems
- 1p+N type circuit breaker with 18mm width
- Combines the functions of a circuit breaker and a residual current device (RCD)
- Suitable for various applications including lighting, power distribution, and motor control
