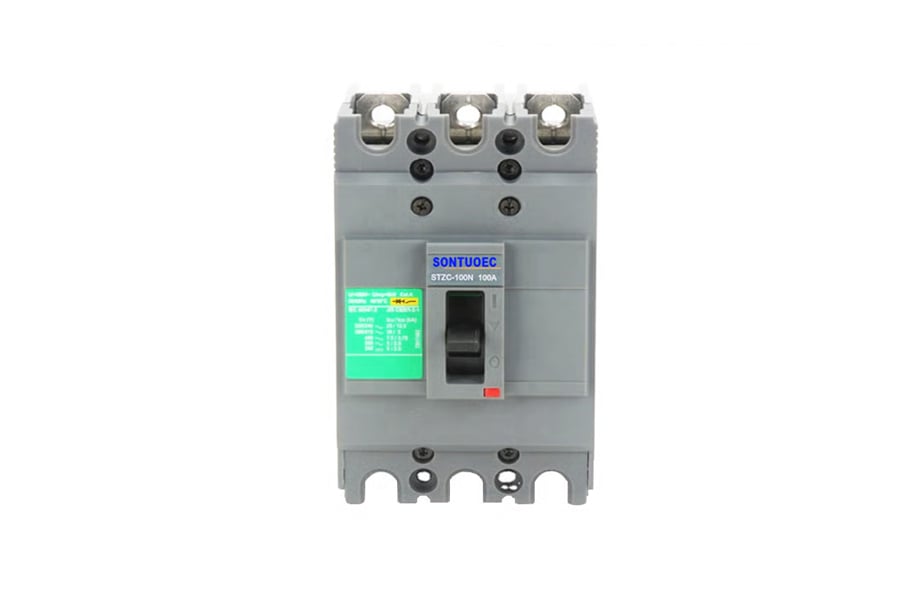

The STZC Series MCCB 3p 60A 100A moulded case circuit breakers represent a reliable solution in circuit protection technology. Designed to safeguard electrical circuits from overload and short-circuit faults, these MCCBs offer robust performance in three-pole configurations supporting current ratings of 60A and 100A. Their versatility and durability make them suitable for various industrial, commercial, and residential applications.
Technical Specifications of STZC Series MCCB 3p 60A 100A
The STZC Series MCCB features a precision-engineered moulded case that houses essential tripping mechanisms for enhanced electrical protection. With a current rating range between 60A and 100A, the 3-pole design ensures reliable interruption across all three lines simultaneously. This series supports voltage ranges compatible with low to medium voltage distribution networks and incorporates adjustable thermal and magnetic trip settings to tailor protection to specific applications.
Advanced Safety Features Incorporated in STZC Series
Safety is paramount with the STZC Series MCCB 3p models. These breakers include automatic trip mechanisms that promptly disconnect electrical supply during abnormal conditions, such as short circuits and overloads. The moulded case offers excellent insulation and resistance against environmental factors like dust and moisture. Additionally, integrated arc extinguishing chambers reduce fire hazards and improve overall operational safety.
Applications of STZC Series MCCB 3p 60A 100A Moulded Case Circuit Breakers
The STZC Series MCCB 3p 60A 100A breakers are widely used across various sectors. In industrial settings, they protect motors, transformers, and power distribution panels. Commercial buildings utilize them to manage lighting and HVAC systems efficiently. These MCCBs are also popular in residential complexes for their dependable circuit interruption and stable performance under varying load conditions.
Installation and Maintenance Advantages
Installing the STZC Series MCCB 3p 60A 100A is simplified by its modular design and standardized mounting options. Quick wiring connections and clear labeling further enhance ease of setup. Maintenance procedures benefit from the breaker’s sturdy moulded case, requiring minimal servicing while ensuring long-term reliability. Scheduled mechanical and electrical inspections can be performed without dismantling the entire unit, saving time and cost.
Performance and Durability under Harsh Conditions
Engineered with durable materials, the STZC Series MCCB 3p withstands harsh environmental conditions, including high temperatures, humidity, and vibration. Its moulded case protects internal components from mechanical impacts and corrosion, ensuring consistent performance. Such resilience makes this series ideal for locations with heavy electrical demands and challenging operational environments.
Energy Efficiency and Operational Benefits
Using the STZC Series MCCB 3p 60A 100A contributes to energy efficiency by limiting energy loss during overload trip events. By protecting circuits from faults, these breakers prevent energy waste and potential damage to connected equipment, which can lead to operational downtime. The precise trip characteristics promote seamless functioning of electrical systems, optimizing energy consumption and reducing operational costs.
Compliance and Standards Adherence
This range of MCCBs complies with international standards such as IEC 60947-2, ensuring that the STZC Series MCCB 3p meets global safety and performance benchmarks. Adherence to these standards guarantees compatibility with other electrical components and acceptance in a variety of industries. Certifications add a layer of trust, helping installers and end-users meet regulatory requirements with confidence.
Customization and Upgrade Options
Manufacturers often provide customizable trip settings in the STZC Series MCCB 3p 60A 100A moulded case circuit breakers. Users can select different thermal and magnetic trip curves to match specific load characteristics. Furthermore, optional accessories such as auxiliary contacts, shunt releases, and undervoltage trips enhance the breaker’s functionality, allowing seamless integration into advanced electrical protection schemes.
Future Trends and Innovations in MCCB Technology
The STZC Series MCCB 3p 60A 100A is part of an evolving market moving toward smarter and more connected electrical protection devices. Integration with digital communication protocols and remote monitoring systems is becoming increasingly common. Such advancements enable predictive maintenance and real-time diagnostics, delivering improved reliability and reducing downtime in electrical installations.
