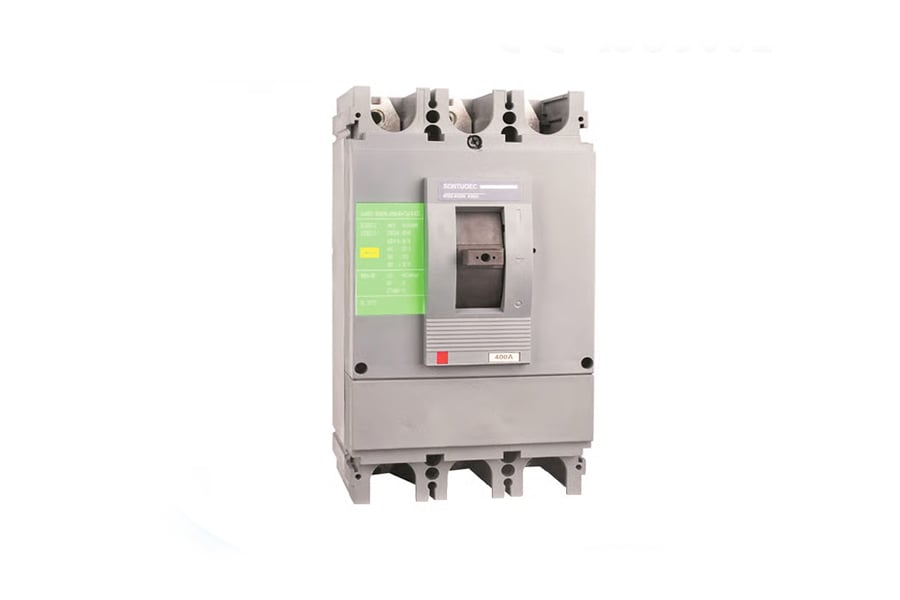

Understanding the Basics of 3 Pole MCCB 65KA Circuit Breaker - High Breaking
A 3 Pole MCCB 65KA Circuit Breaker - High Breaking is a critical electrical protection device designed to safeguard electrical installations from overloads and short circuits. The term “3 Pole” indicates that it can simultaneously interrupt current in three phases, making it suitable for three-phase power systems. The "65KA" represents the high breaking capacity, meaning the breaker can safely interrupt fault currents up to 65,000 amperes without damage or hazard, ensuring reliability in demanding environments.
Significance of High Breaking Capacity in MCCBs
The high breaking capacity of 65KA is an essential feature for circuit breakers operating in industrial and commercial applications where fault currents can be extremely high. This high interrupting rating ensures that the MCCB can handle sudden surges or short circuits effectively, minimizing equipment damage and maintaining safety standards. It also helps in preventing electrical fires and operational downtime by quickly isolating faulted circuits.
Applications of 3 Pole MCCB 65KA Circuit Breakers
These MCCBs are commonly employed in power distribution panels, motor control centers, and large-scale electrical equipment setups, particularly in heavy industries, manufacturing plants, and construction projects. The 3 Pole design suits three-phase loads such as motors and transformers, where balanced protection across all phases is required alongside a high fault tolerance due to 65KA breaking capacity.
Key Technical Specifications to Consider
When selecting a 3 Pole MCCB 65KA Circuit Breaker - High Breaking, important specifications include rated operational voltage (typically ranging up to 690V), rated current, trip characteristics, and breaking capacity. Additional parameters like short-circuit withstand rating, mechanical durability, and temperature tolerance also influence the breaker’s performance and suitability for specific installations.
Enhanced Safety Features with MCCB 65KA Breaking Capacity
Safety is greatly improved by using a high breaking capacity MCCB. Its robust internal construction, including thermal-magnetic trip units or electronic trip settings, enables it to detect electrical faults rapidly. This capacity, combined with quick interruption, reduces the risk of arc flash, equipment damage, and injury. The 3 Pole MCCB 65KA Circuit Breaker - High Breaking supports safer maintenance and operation in intense electrical environments.
Comparing 3 Pole MCCB 65KA with Other Protection Devices
Compared to other circuit breakers such as MCBs or lower capacity MCCBs, the 3 Pole MCCB 65KA offers superior fault current interruption capabilities suitable for larger power systems. Unlike fuses or lower-grade breakers, it can be reset after a fault, reducing replacement costs. This makes it a cost-effective and reliable choice, especially where high breaking capacity is non-negotiable.
Installation and Maintenance Best Practices
Proper installation of a 3 Pole MCCB 65KA Circuit Breaker requires consideration of system voltage, current rating, and panel compatibility. Regular maintenance, including visual inspections, cleaning, and testing trip functionality, helps sustain performance. Ensuring connections are tight and free from corrosion enhances the longevity of the breaker in high-stress operational environments.
Impact of High Breaking Capacity on Power System Stability
In situations of short-circuit or overload, the 3 Pole MCCB 65KA Circuit Breaker plays a pivotal role in maintaining power system stability by reliably interrupting fault currents. Fast and effective fault isolation prevents cascading failures and limits disturbances to the broader electrical network, ensuring continuous operation and reducing downtime across industrial and commercial operations.
Advancements in 3 Pole MCCB 65KA Circuit Breaker Technologies
Manufacturers are integrating innovations such as advanced electronic trip units and communication capabilities into 3 Pole MCCB 65KA Circuit Breakers. These advancements allow for precise fault detection, variable trip settings, and remote monitoring, which improve protective coordination and system diagnostics. Such smart MCCBs facilitate better energy management and system control.
Choosing the Right 3 Pole MCCB 65KA Circuit Breaker for Your Application
Selecting the optimal 3 Pole MCCB 65KA Circuit Breaker - High Breaking requires assessing the electrical load demands, fault current levels, and environmental conditions. Collaborating with electrical engineers and consulting technical datasheets ensures the choice meets regulatory standards and system requirements. This guarantees effective protection and longevity of the electrical installation.
